How to Replace the Cartridge on Kitchen Faucet SC101

• Water supply to the faucet must be turned off, see article How to safely shut off water supply to a Faucet or Shower
• Ensure the kitchen sink drain is securely plugged to avoid any potential loss of parts during the process.

Tools recommended:

• 2.5mm (3/32 inch) Allen key
• Pince à bec fin
• An adjustable wrench.

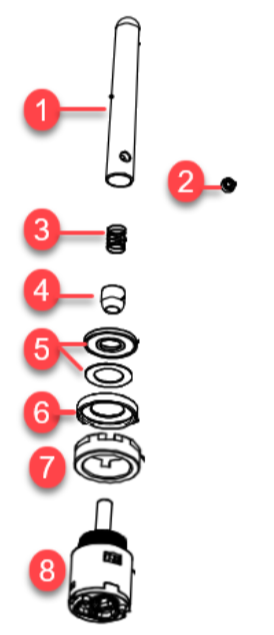

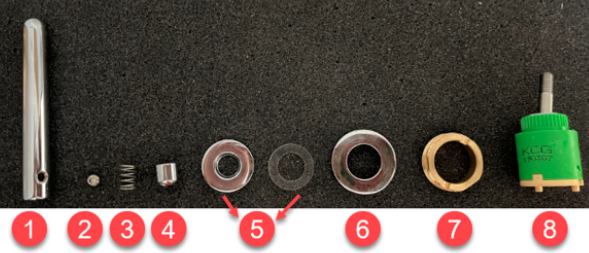

Lever Set screw Ressort Handle swivel Handle spacer and plastic washer Handle dome Écrou de cartouche Cartouche
